Replacing the door speakers on a Honda CR-V (3rd generation, 2007–2011) can significantly improve the sound quality of the vehicle’s audio system. The process is straightforward but requires basic tools like a trim removal tool, screwdriver, and possibly a socket set.
Steps:
- Remove the Door Panel: Start by removing the door panel. Use a trim removal tool to carefully pop off the plastic covers, including around the door handle and armrest. Remove any screws hidden under these covers.
- Disconnect Electrical Components: Once the panel is loose, disconnect the electrical connections for the power windows and door locks.

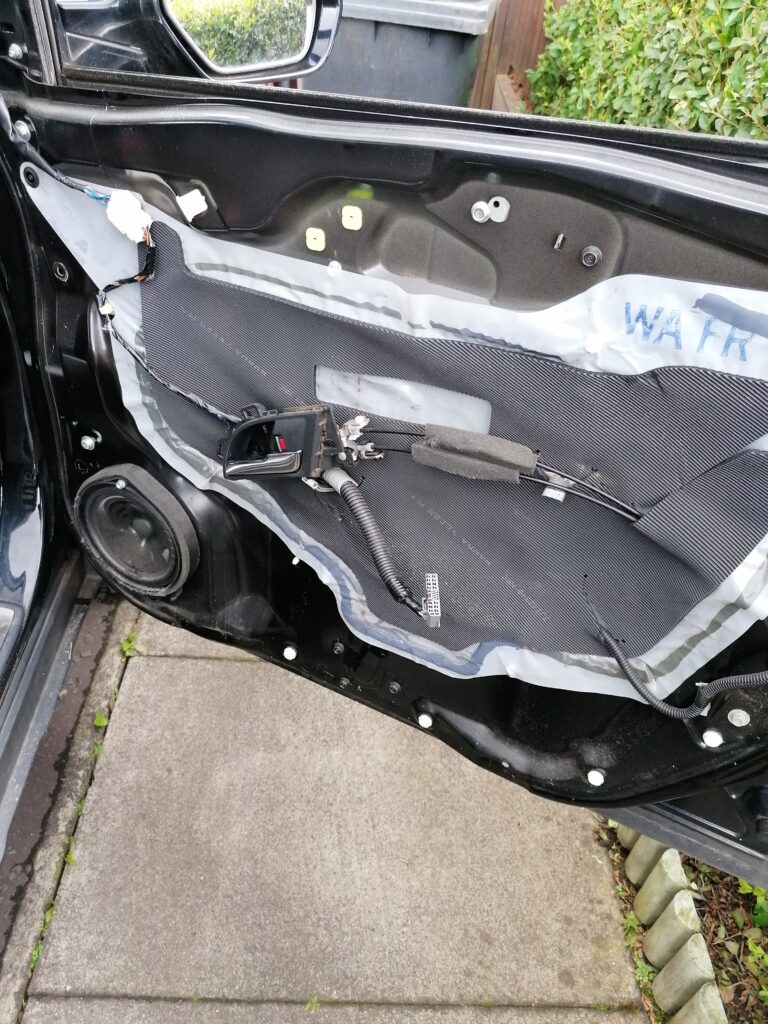

- Access the Speakers: With the panel off, the factory speaker is now visible. Remove the screws securing the speaker and disconnect the wiring harness.

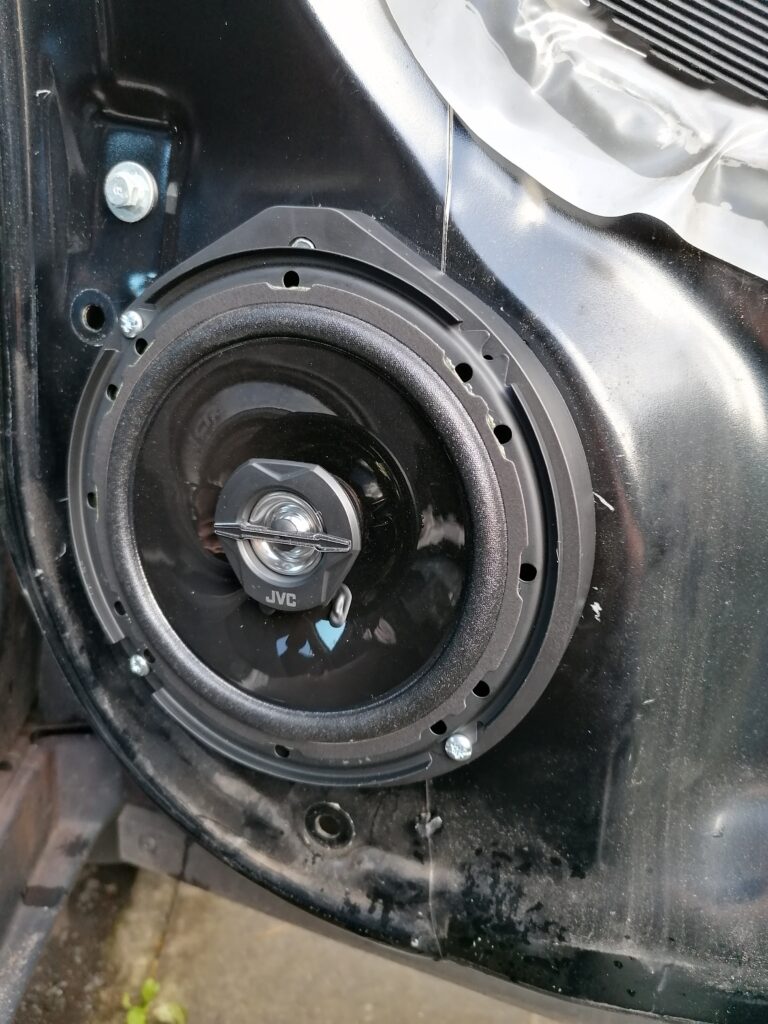

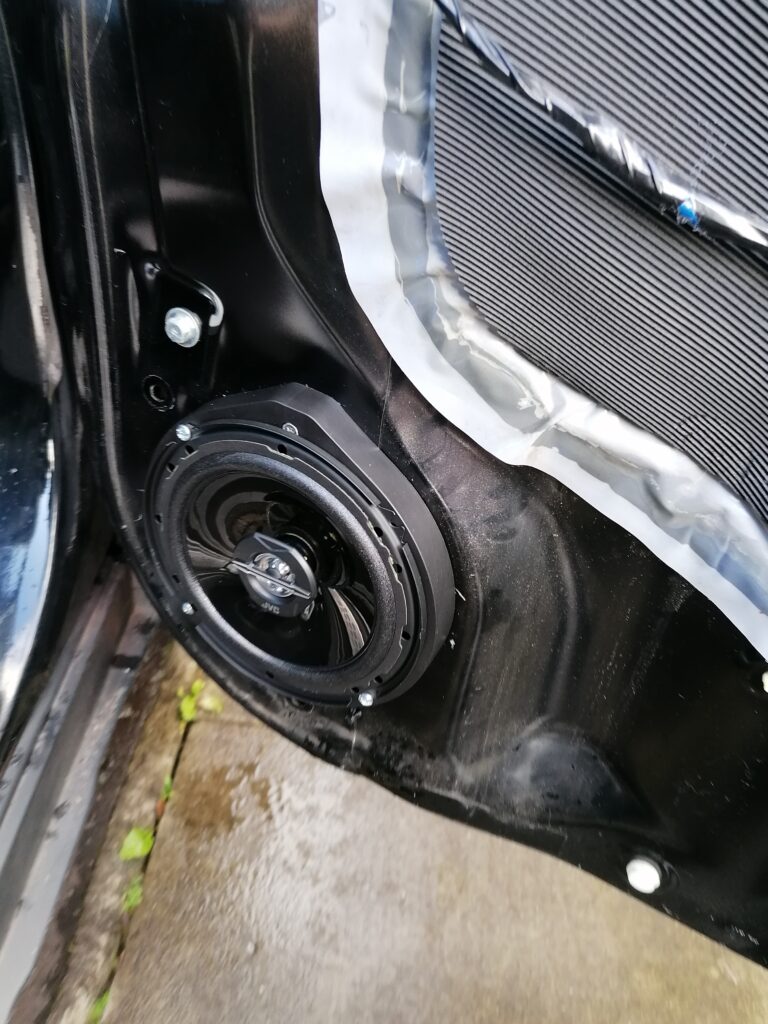

- Install the New Speakers: Attach the new speaker using the existing wiring harness or a wiring adapter. Ensure the speaker is securely mounted.
- Reassemble the Door: After the new speaker is installed, reverse the steps to reattach the door panel.
Choosing speakers that match the factory size (6.5 inches for front and rear) ensures a smoother installation process without modifications. Sound deadening materials may also be added to improve audio performance.
