I ordered some transparent buttons for my Gameboy Pocket so that I could do my Gameboy Pocket Custom buttons mod. This post shows how to replace the buttons in your Gameboy Pocket and shows off my mod :)

img_3177

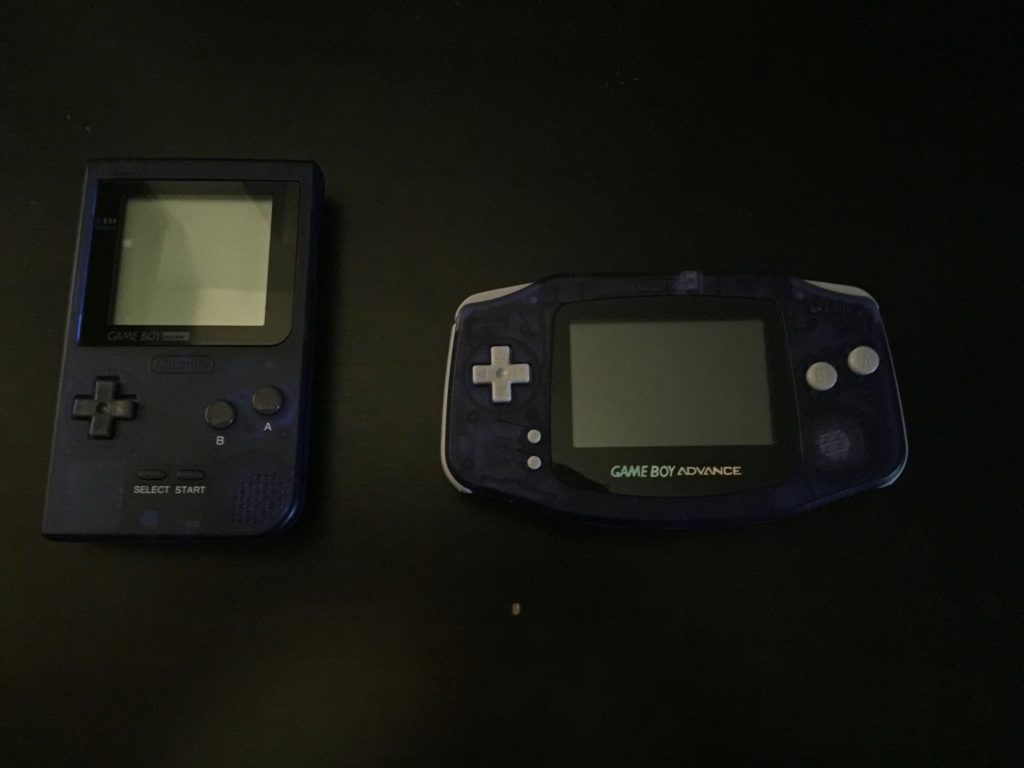

Before the button mod – my Gameboy Pocket and my Gameboy advance (look out for a post on the Gameboy advance button mod)

img_3178

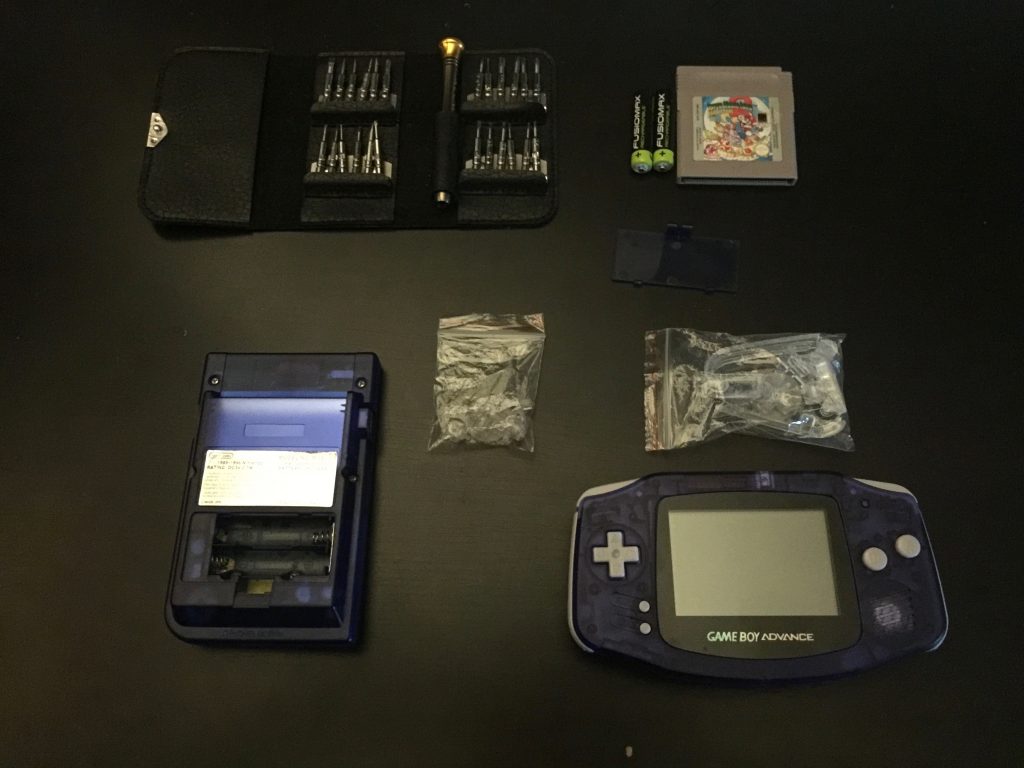

All the things set to begin!

img_3179

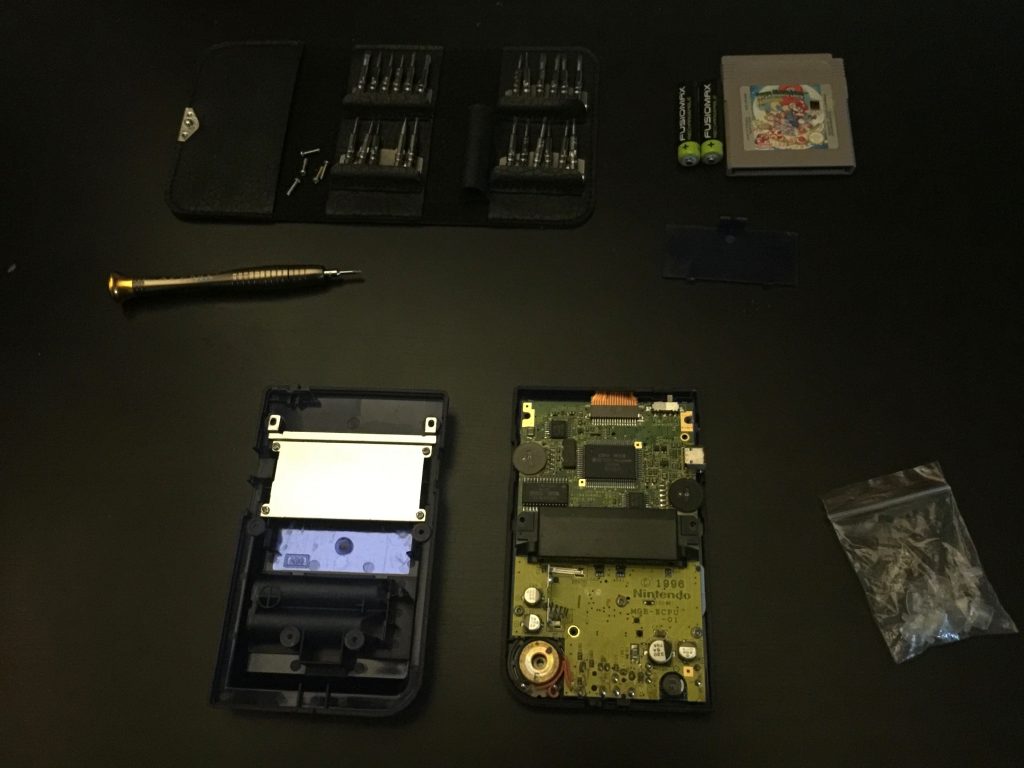

Opening the Gameboy Pocket

img_3180

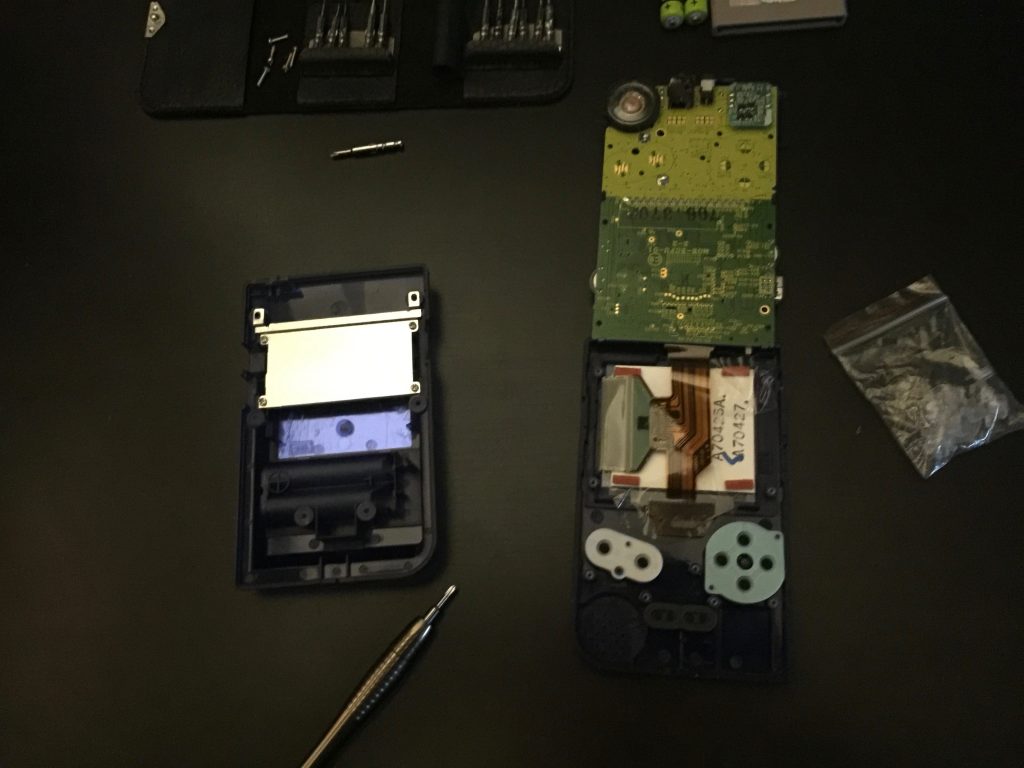

removing the screws (but keeping the ribbon cable attached) and carefully rotating the pcb to gain access to the buttons underneath

img_3181

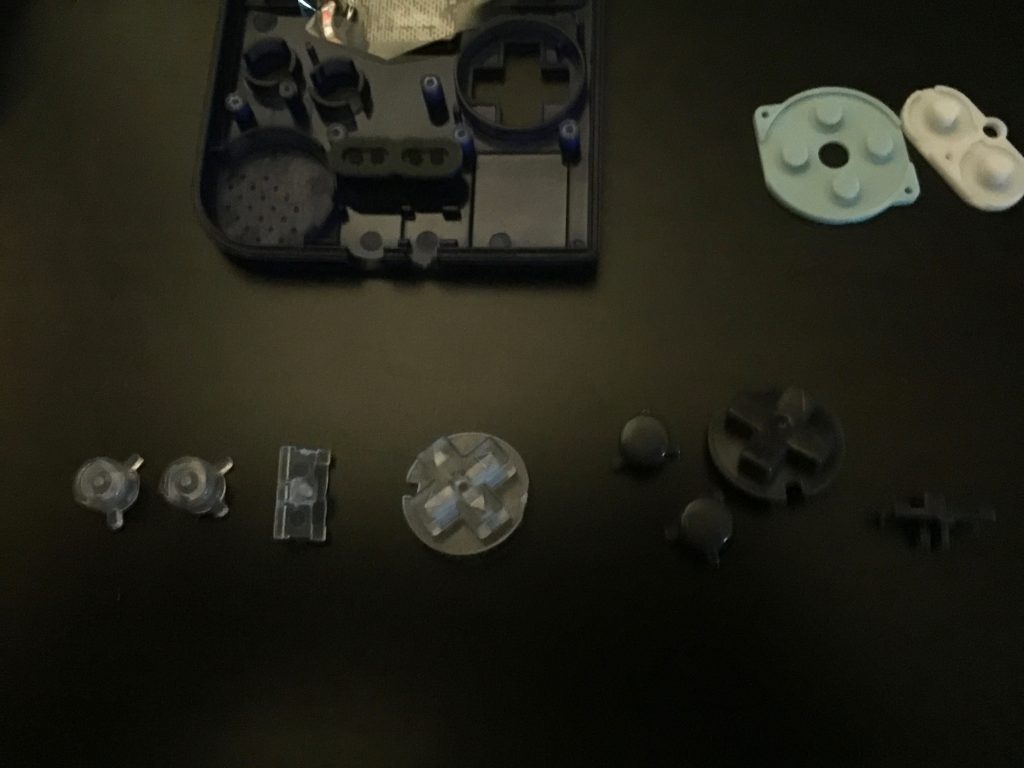

In this photo I have removed the rubber backing to the old buttons (these were new when I did my case mod, so I’ll be re-using them) and have removed the old grey buttons

img_3182

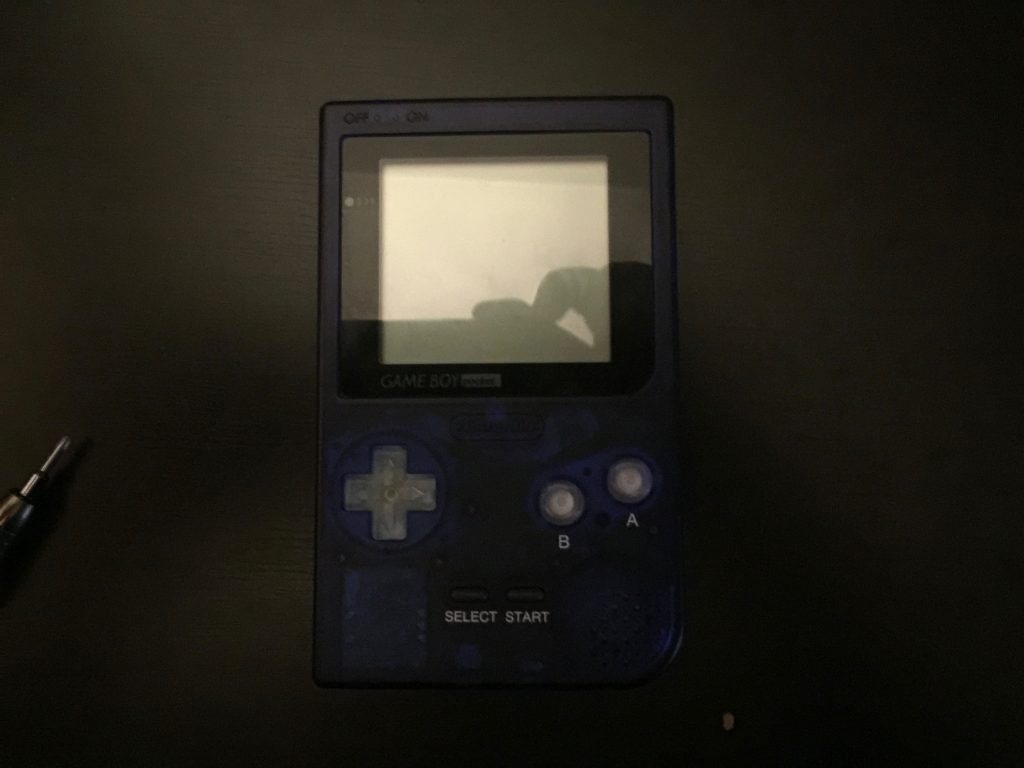

New buttons have been added to the Gameboy Pocket and the case re-assembled. I needed to take it apart again as one of the buttons was sticky – I hadn’t seated the rubber things properly – so be wary of that :D

img_3184

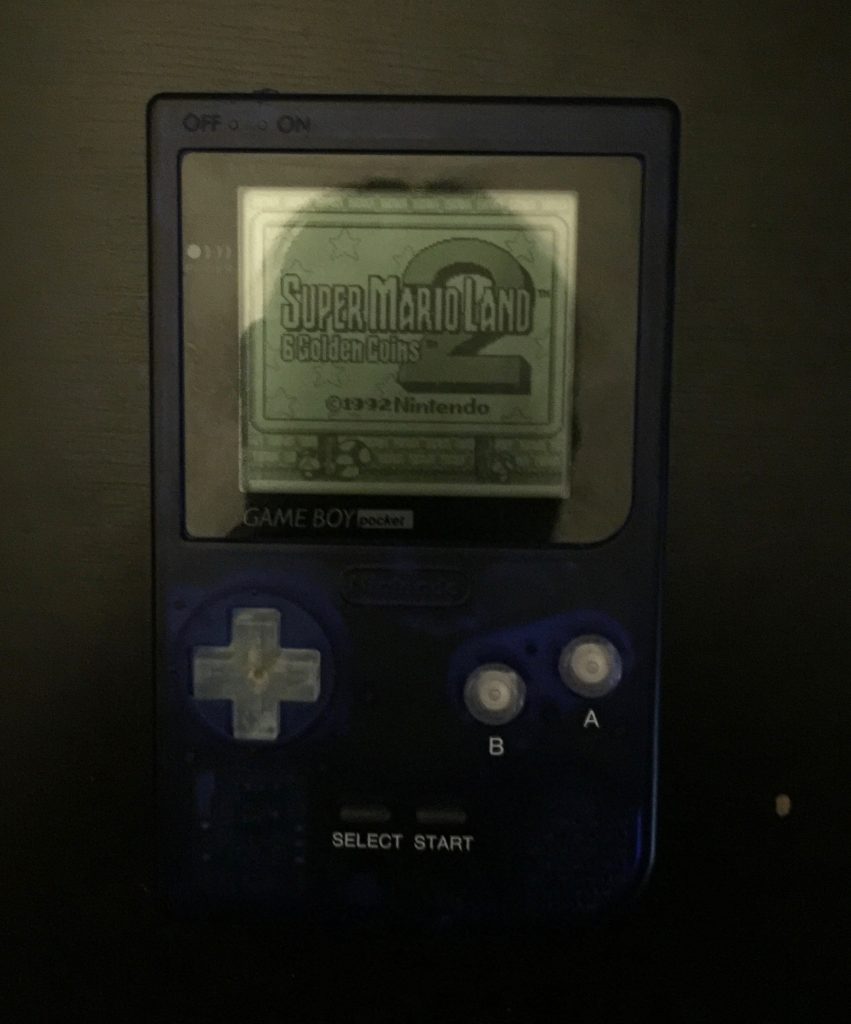

checking to see that everything works properly :)

img_3186

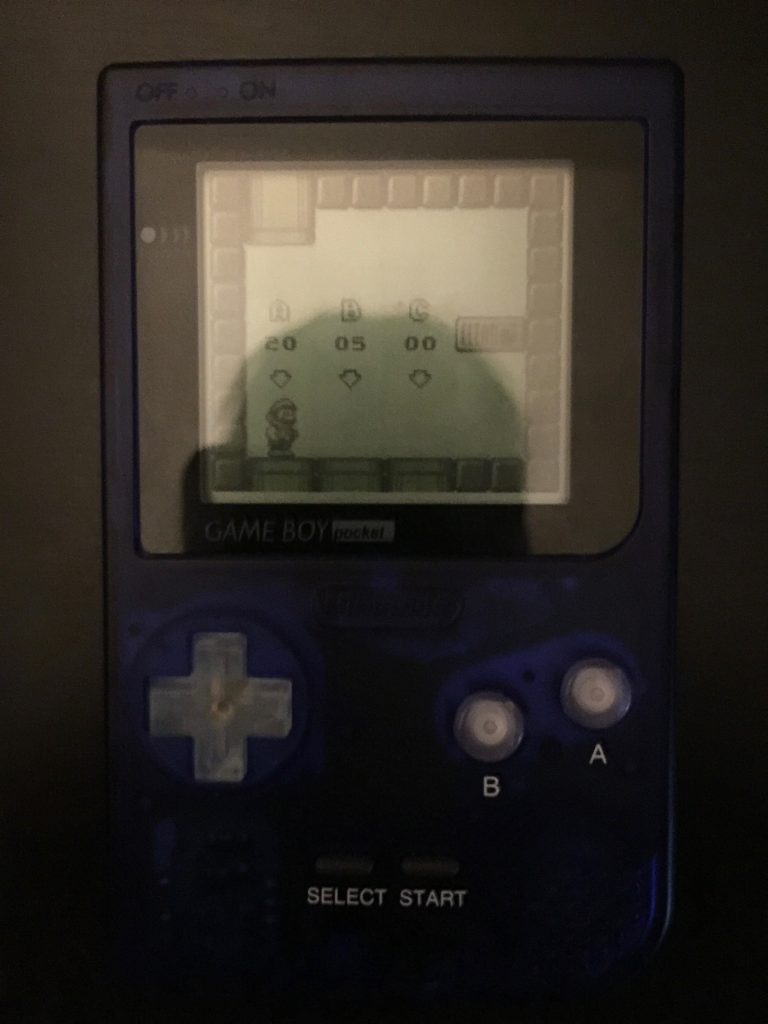

success!!

img_3187

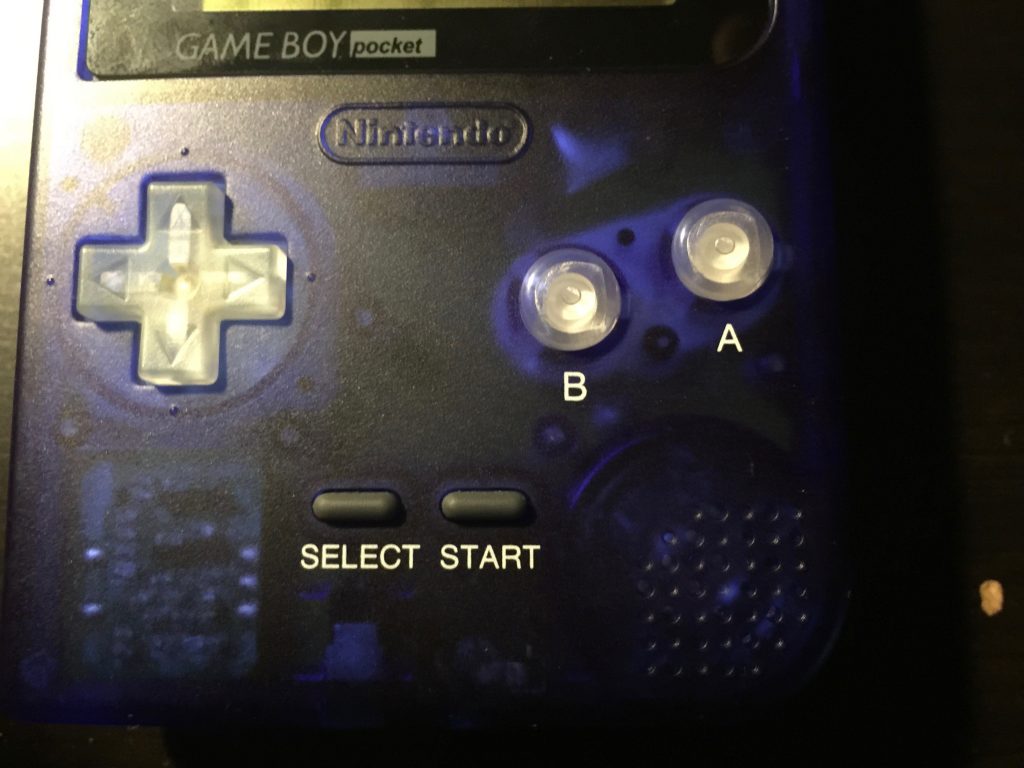

A close-up of the buttons after they were installed.

img_3188

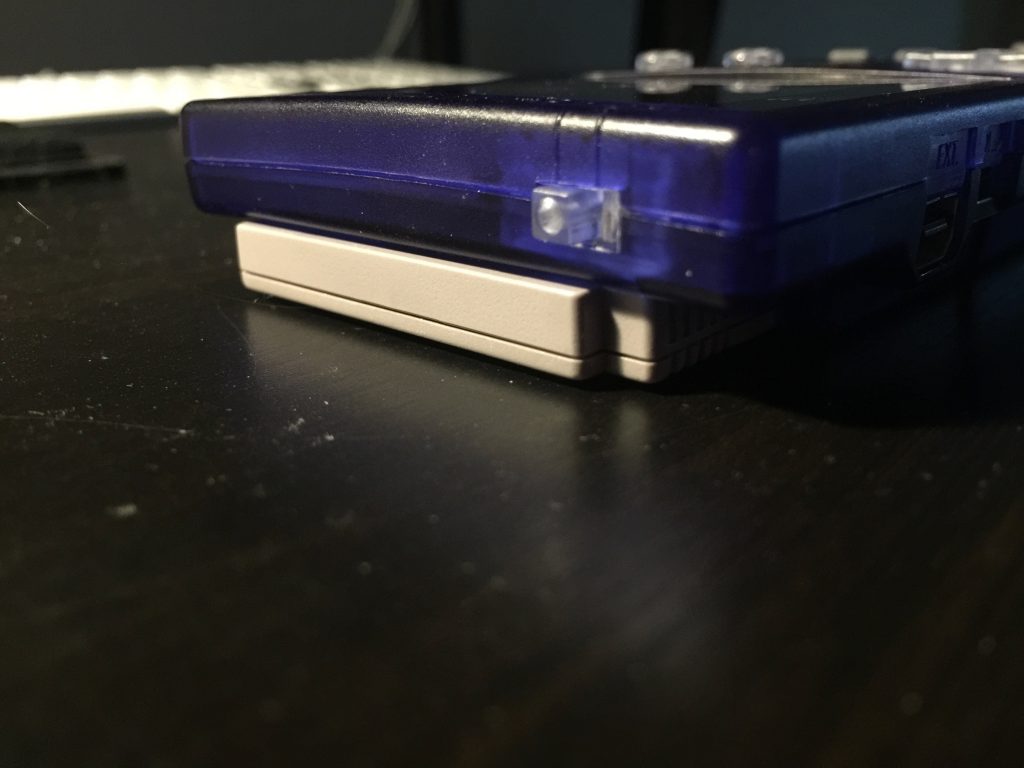

another close-up, this time showing the power switch at the top :)

img_3205
This one shows my finished Gameboy Pocket Custom buttons mod next to my Gameboy advance
